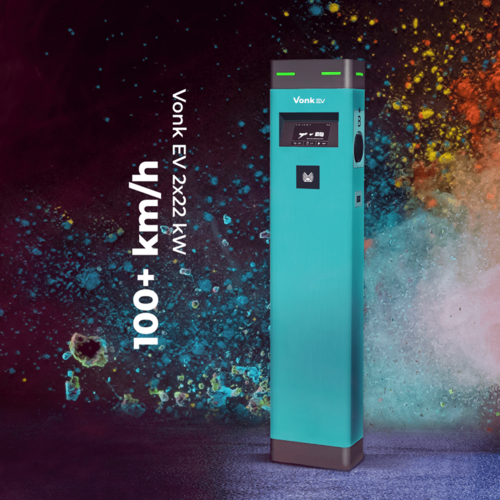

Vonk EV CityCharge PRO, public charger with two Type 2 sockets, 2 x 22 kW
Vonk EV CityCharge PRO, public charger with two Type 2 sockets, 2 x 22 kW
Free shipping all over Estonia for over 20 EUR transactions!
Toote kirjeldus
3-phase Vonk EV with two Type 2 plugs. Powerful and fast charging post that can charge two vehicles at the same time. The charger is equipped with a main fuse, residual current device, and consumption current meters. All of them are installed in the charger housing. Great for public charging. In addition to the possibility of connecting to the Vonk EV payment solution and management system, we can also order special solutions for the charger according to the customer's wishes, such as the installation of charging cables for the charger.
The charger is equipped with a 7 ″ screen that guides the user and gives an overview of the charging process. There are several ways to start the charger, the charger has an RFID card reader and you can choose different solutions to connect the charger to the network: 4G LTE / Wi-Fi / Ethernet (LAN). Depending on the customer's wishes and needs, card activation, as well as various internet-based solutions, can be used. The charger supports the OCPP1.6 protocol and can also be integrated into the Vonk EV (or other) charger management system.
Tööpõhimõte
- Circuit breaker: 32 to 63 A
- Charging: 3 to 22 kW
- Power supply: 1 or 3-phase (230 V / 400 V)
- Certified: UL, CE, TUV
- Screen: 7" LCD
- Degree of protection: IP55
- Housing material: metal
- Controller: OCPP 1.6
- Meter: 2 pcs included
- Type 2 socket: 2 pc
- Charging cable: can be added
- Installation cable type (Cu): 3 × 2.5 - 6mm2
- Charger mounting type: wall or post
- Depth: 303 mm
- Width: 445 mm
- Height: 1525 mm
- Weight: 30 kg
Further information
Installation
Standard installation takes 2-3 hours.
During installation, an on-site electrical test is performed to measure the phase load to set the charger to the maximum allowable charging capacity. If necessary, a load relay is added in front of the charger, which ensures that the charger charges the car according to the capacity of the household and does not interfere with daily life.
Our electrician performs the necessary work on the electrical panel (installs the necessary fuses) and installs the charger in the desired location. According to the order, the data connection of the charger is activated and the Vonk EV management system of the charger is set up.
After the installation of the charger, the customer is introduced to its main functions and daily use, and a handover-acceptance report is drawn up for both the device and the installation work.
Contact us at zero@vonktech.com for an exact installation quote.
