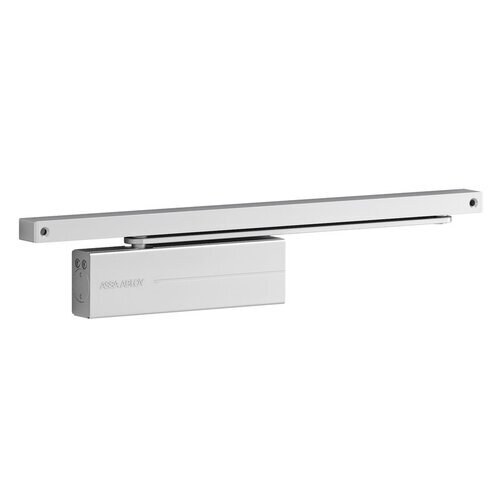

ASSA ABLOY DC175 Door Closer – Silver (EV1)

The ASSA ABLOY DC175 is a modern, minimalist door closer designed primarily for interior doors equipped with access control systems and fire-rated doors. Its discreet, streamlined design makes it virtually unnoticeable while complementing contemporary interiors. It is ideal for hotels, offices, consulting rooms, and other commercial environments.

Features

• Equipped with Cam-Motion® technology – a cam-operated mechanism that significantly reduces the opening force, making the door easier to open.
• Complies with EA/CEN TR 15894 requirements.
• Certified to EN 1154, Power Size 3–4.
• Suitable for installation on fire- and smoke-rated doors.
• Suitable for doors up to 1100 mm wide.
• Can be installed on both the hinge side (pull side) and the opposite hinge side (push side) of the door.
• Does not include a backcheck function and is therefore not recommended for heavy-duty or high-wind environments.

Product Benefits

• Suitable for both left- and right-handed doors.
• Adjustable closing speed (120°–15°) and latching action (15°–0°) via adjustment valves located on the end plate.
• Maximum door opening angle of 160° when installed on the hinge side.
• Maximum door opening angle of 110° when installed on the opposite hinge side.
• Thermodynamic valves ensure consistent, reliable performance under varying temperature conditions.
• Colour: Silver (EV1).
• Compatible with the A278 hold-open device (must not be used on fire- or smoke-rated doors).
• Compatible with the A279 opening damper.
