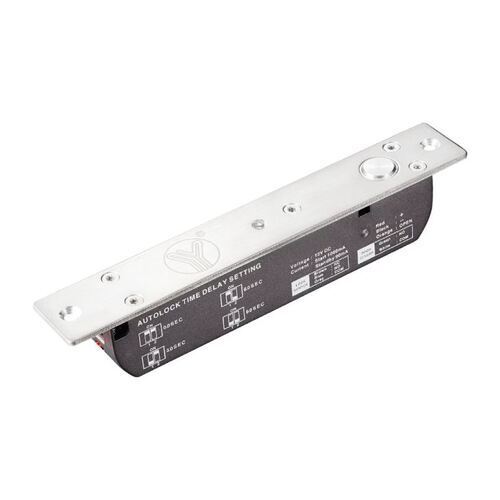

- Fail Secure: unlocked when energized.
- Face plate: 260mm x 30mm x 48mm (LxWxH).
- Strike: 100mm x 25mm x 3mm (LxWxH).
- Bolt: 16mm diameter, stainless steel 16mm throw.
- Voltage: DC12V.
- Start current: 950mA.
- Standby current: 150mA.
- Solid bolt: polishing housing, 2000 kg holding force.
- Suitable for: wooden door, glass door, metal door.
- Autolock time delay: 0,3,6,9 sec.
- Signal output: Lock status Output, NO/NC/COM.
- Surface temperature: low temperature.
- Induction distance: 8 mm.
- Operating temperature: -10~+25°C (14-131F).
- Operating humidity: 0~90% (non-condensing).
- Special designed: tested to 500000 operations.
- Weight: 1.436 kg.
- Standard packing: 10 pcs.

FEATURES

- The photoelectricity control technology, prevent machanical defect.
- Low power, safety and durable.
- Low current, environmental protection.
- Special photoelectricity control, three steps current application.
- Long life with 500000 operations.
- MOV provides reverse current protection.
- Superior strength aluminium alloy, solid stainless steel bolt.
- Autolock time delay: 0,3,6,9 sec.
- Door statue signal output contact (NC.COM).
- Double protection for loading current.
- Certificate: CE.
- Photoelectricity control, low temperature.

A：The low current is changed immediately.
B：When door frame doesn`t coincide with door leaf, door leaf against the bolt, then the electric bolt will start the low-power function to bring low temperature.
C：The photoelectricity control technology, prevent the mechanical defect.
